Digital Manometer Sekhmet 1/8 BSP 28 mm

This digital Sekhmet 28 mm manometer has a 1/8 BSP thread and is designed to accurately read pressure, without being affected by lighting conditions or distorted readings, which can sometimes occur with analog manometers. The maximum displayed air pressure ranges from 1 to 400 bar (15 to 6000 psi), with a maximum deviation of 0.25%.

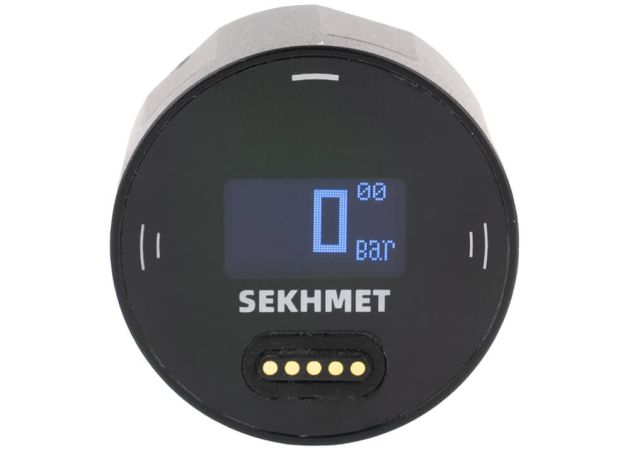

An OLED display with buttons on the left, top, and right has an IPX7 waterproof certification: it can be submerged for a maximum of 30 minutes at a maximum depth of 0.5 meters. After an hour of charging with the magnetic charging cable, the manometer can be used for up to three months thanks to its 145 mAh battery.

The Sekhmet 1/8 BSP 28 mm digital manometer can display the following data:

• Current air pressure
• Number of shots fired
• Number of shots remaining
• Last used air pressure per shot
• Average air pressure consumed per shot
• Temperature

Three power-saving modes can be selected:

• Sleeping: display automatically turns off after a set amount of time, can be turned on with a brief touch
• Wake up with the screen off: manometer is always on, but the display turns on after activity such as a shot or touch
• Screen always on: display is always on

Settings:

• Simple mode: only displays current air pressure without other parameters
• Fill/fire wake up: turns on the display only during a shot or filling
• Screen off time: duration after which the display turns off (0-10 seconds)
• Sleep time: duration after which the manometer goes into 'sleep' mode (0-60 minutes)
• P-minimum: minimum usable air pressure of your compressed air reservoir
• Data clear: resets all data such as number of shots, shots remaining, last used amount per shot, and average consumption per shot
• Rotate screen: rotate the screen by 180°

Specifications
