Vector Optics X-Accu Adjustable Elevation 34 mm Dovetail Mount
Vector Optics X-Accu Adjustable Elevation 34 mm Dovetail Mount is backordered and will ship as soon as it is back in stock.
Description
Description

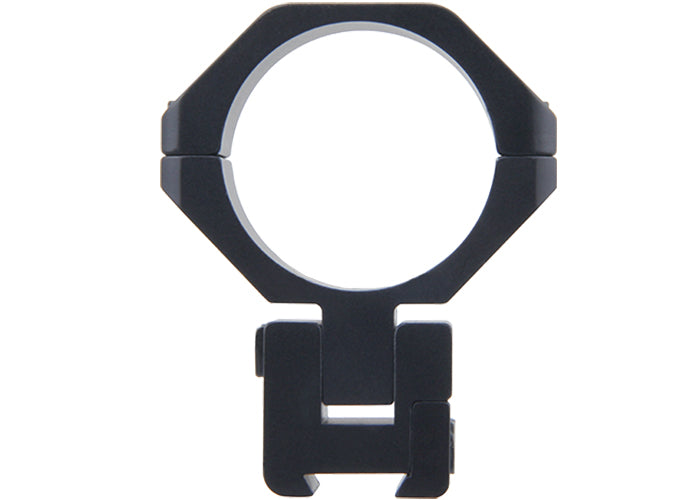

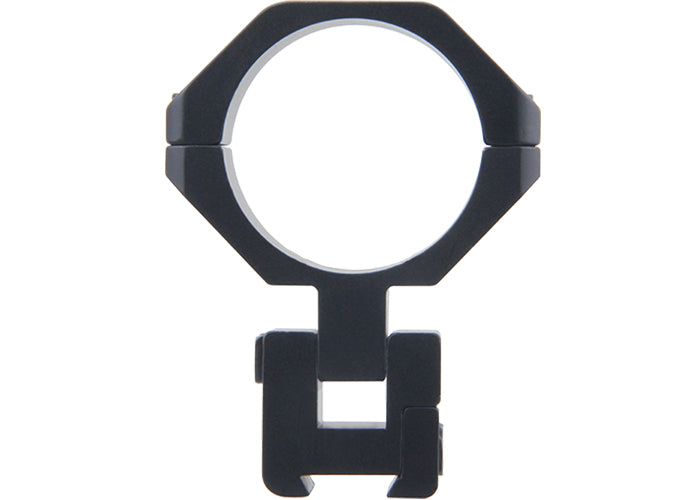

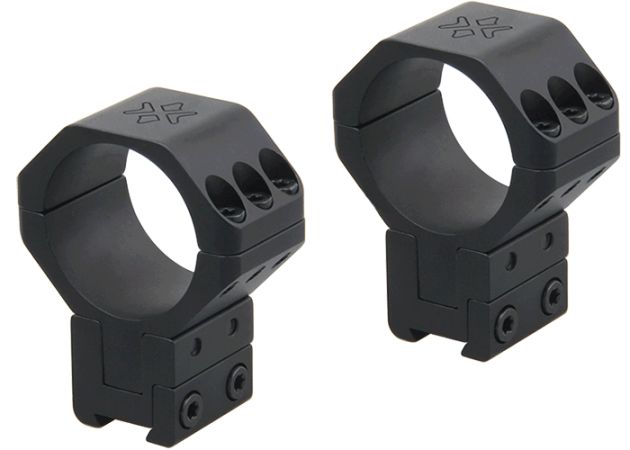

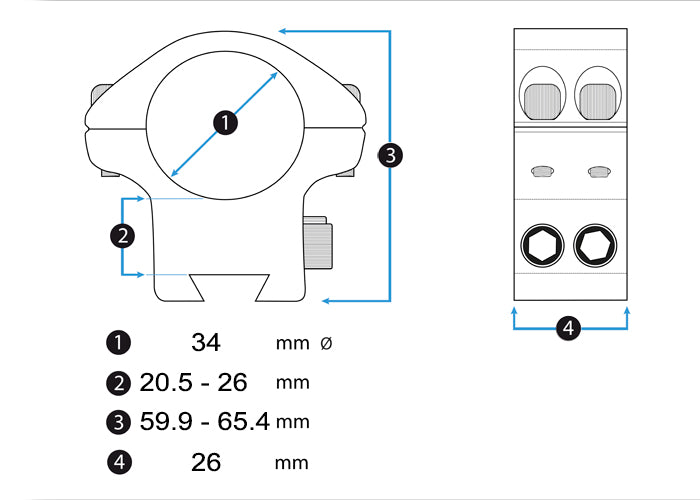

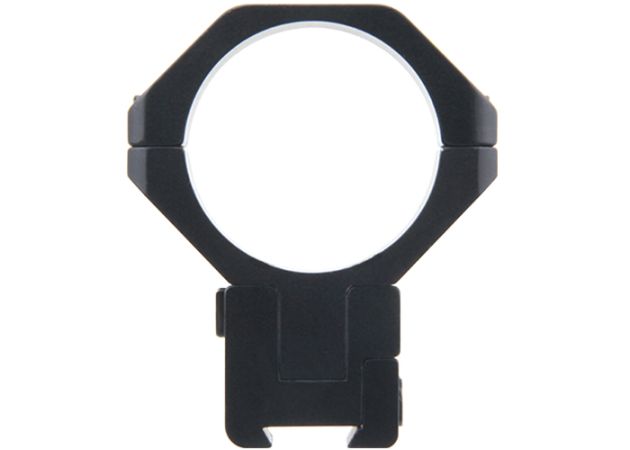

The Vector Optics X-Accu Adjustable Elevation 34mm Dovetail is a height-adjustable mount. It can be adjusted from 37.5 to 43 mm, measured from the bottom of the mount to the center of the ring, giving the mount an adjustment range of 5.5 mm.

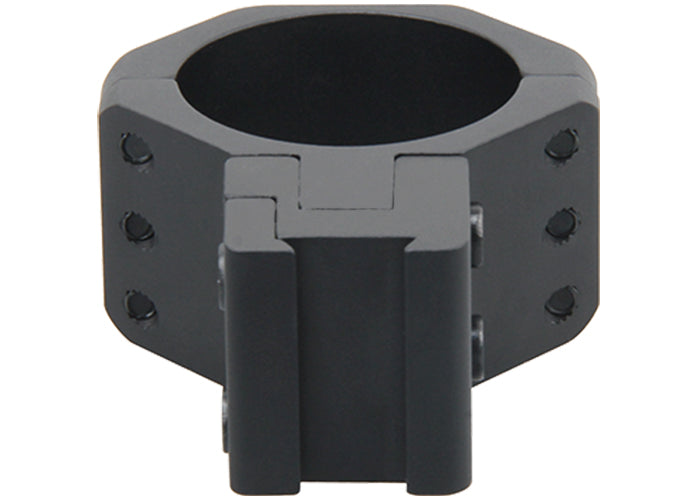

The mount is CNC machined from 6061-T6 aluminum. It can be attached by means of a dovetail clamp secured with two torx screws. At 26mm, the mount is extra wide, providing a large clamping surface, so the six screws only need to be tightened to a torque of 2 Nm. The diameter of the Vector Optics X-Accu Adjustable Elevation Dovetail mount is 34 mm.
Specifications
| Brand | Vector Optics |
|---|---|
| Product code | XASR-3055 |
| Suitable for | Dovetail rail (9-11 mm) |
| Suitable for tube diameter (mm) | 34 |
| Type | 2-piece |
| Height | Medium/High |
| Stop pin | No |
| See-through | No |
| Quick release | No |
| Adjustable | Yes |
| Color | Black |
| Material | Aluminium |
| Extras | Tools |
