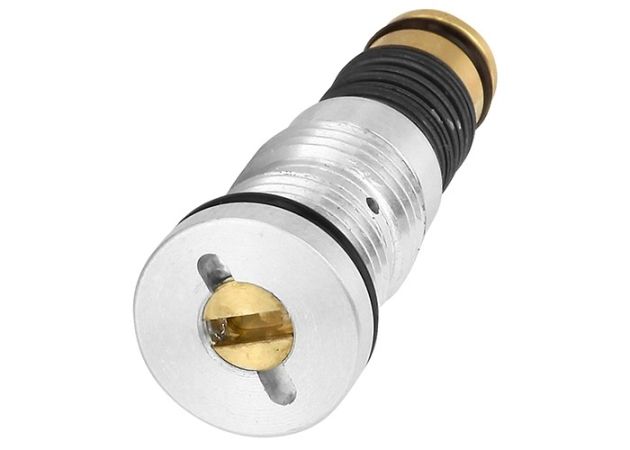

Regulator Huma FX Impact/Crown Gen2

This Huma FX Impact/Crown Gen2 regulator can be used as a replacement for the standard 16 mm regulator with 8 mm Belleville spring washers in both the FX Impact and FX Crown air rifles. The regulator is specially designed to fit into the very limited space of both air rifles.

An advantage of the Huma FX Impact/Crown Gen2 regulator is the fact that it does not have a plastic regulator piston, but one made of brass with an easily replaceable plastic sealing ring. It can happen that the regulator gets damaged due to incorrect handling, causing the plastic piston to fail. In the case of the Huma FX Impact/Crown Gen2 regulator, the piston remains intact and only the plastic sealing ring needs to be replaced.

There are two different versions with a different pressure range for the Huma FX Impact/Crown Gen2 regulator:

• High Pressure with an adjustment range between 80 and 150 bar, as standard
• Extra High Pressure with an adjustment range between 145 and 190 bar for tuned air rifles

The Huma FX Impact/Crown Gen2 regulator comes with:

• Belleville spring washers, matching the chosen pressure range
• Set of plastic sealing rings

Assembly instructions can be found here: Huma FX Impact regulator manual
