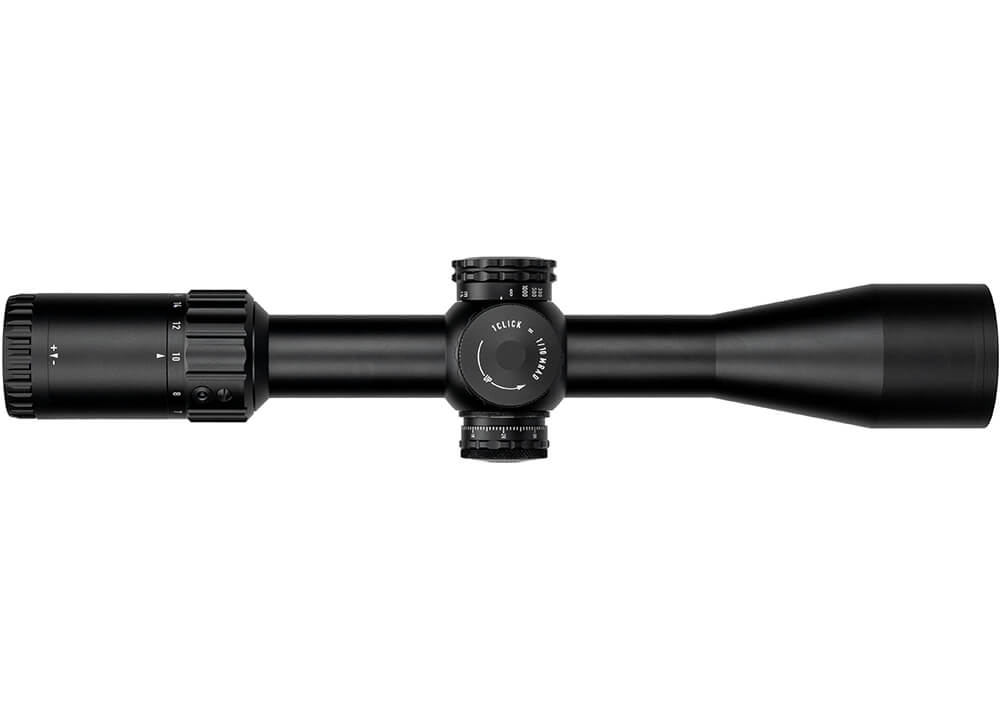

Element Optics Helix GenII 4-16x44 Riflescope

Element Optics Helix GenII 4-16x44 Riflescope

The Element Optics Helix GenII 4-16x44 riflescope builds on five years of faithful service. This second generation introduces a sharper image through new glass, improved ergonomics, and well-thought-out innovations for precision shooters and hunters alike.

New Helix GenII 4-16x44 riflescope features:

• Upgraded German glass:
• 14% wider field of view
• More forgiving eyebox
• Improved edge-to-edge sharpness
• Improved parallax knob:
• Larger diameter
• Smoother operation
• More precise adjustment
• Redesigned turrets:
• Better tactile feedback
• Larger diameter for more grip
• 8 Mrad or 20 MOA per revolution
• Zero-stop on the exposed elevation turret
• Capped windage turret: more suitable for hunters
• Available reticles:
• MPR-1C:
• 0.1 Mrad or 1/4 MOA
• Improved eyepiece: diopter adjustment extended from +2/-2 to +3/-2.5
• Length shortened from 360 mm to 350 mm

Original Element Optics Helix features:

• Fully multi-coated lenses for excellent brightness and contrast
• Zoom lever for quick magnification adjustment (replaceable with included hex screw)
• Turrets with stainless steel internals for durable and repeatable adjustments
• Zero-stop included
• Parallax adjustable from 15 meters to infinity
• Waterproof, shockproof, and nitrogen-filled to prevent internal fogging

---

Specifications

Series	Element Helix
Product code	50107 - 0.1 Mrad, 50108 - 1/4 M.O.A.
Product status	New
Optical magnification	4-16x
Objective diameter (mm)	44
Tube diameter (mm)	30
Reticle	MPR-1C
Reticle position	1st focal plane
Focus	Side focus
Illumination	No
Mounting rail type	No rail
Eye relief (mm)	101.6
Field of view at 91.44 meters	9.2 - 2.3
Field of view at 100 meters	10 - 2.4
Turret adjustment	0.1 Mrad, 1/4 M.O.A.
Length (mm)	350
Weight (grams)	675
Mounting rings included	No
Color	Black
Extras	Flip-up caps, Lens cloth, Lens cover, Sunshade, Thread protector, Zoom lever, Tools
