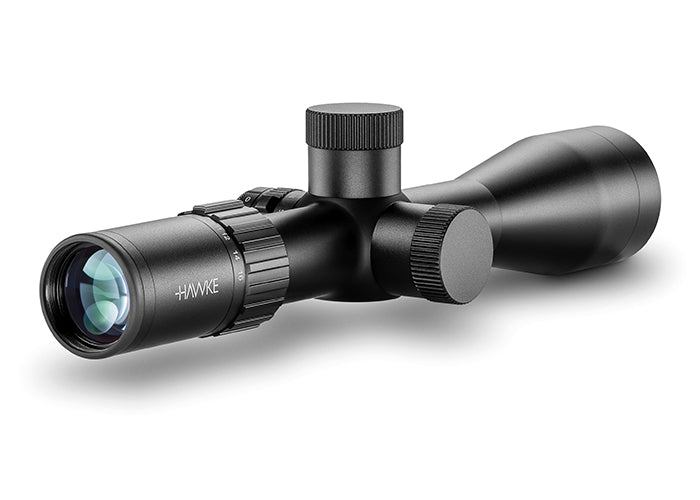

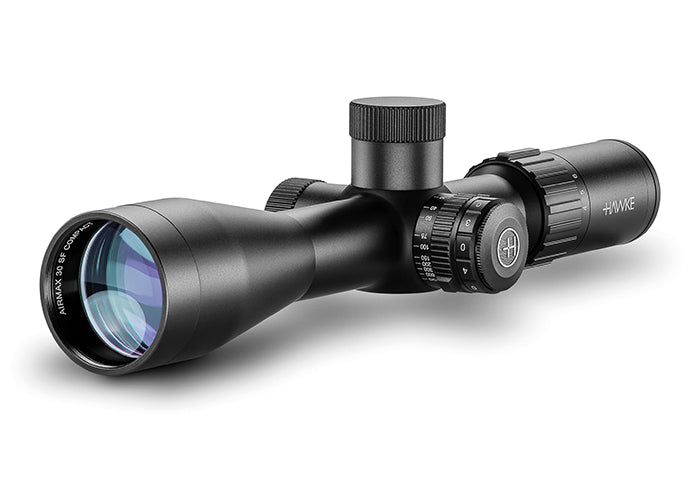

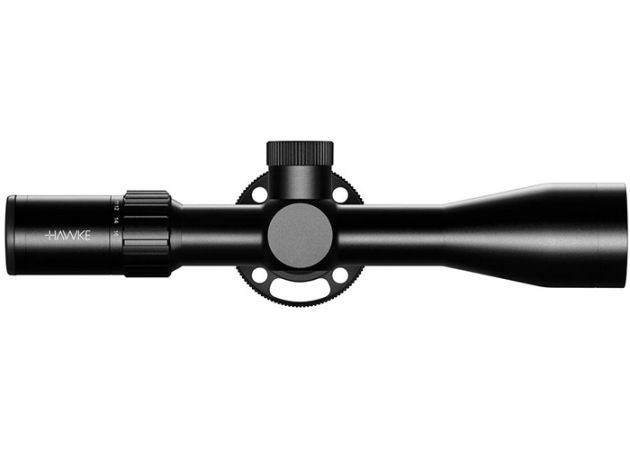

Hawke Airmax 30 SF Compact 4-16x44 AMX IR Riflescope

The Hawke Airmax 30 SF Compact 4-16x44 AMX IR is a riflescope that is very suitable for use on air rifles. Thanks to its Mil Dot reticle, the AMX IR reticle is perfect for the curved ballistic trajectory of a pellet or slug.

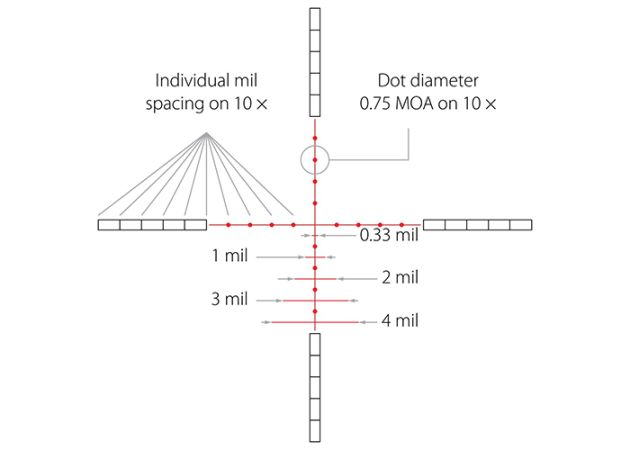

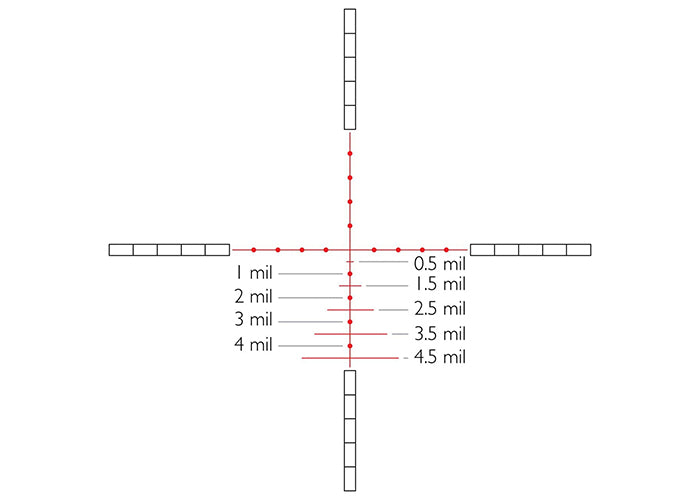

The AMX IR reticle is glass etched, making it very shock resistant. It is placed in the second focal plane and designed to display exact MIL distances when used at 10x magnification (see images or the reticle manual under the heading 'Downloads'). It offers a multitude of extra aiming points when shooting at longer distances, which eliminates the need for constant adjustment of the scope. For this reason, the lockable and resettable turrets are also equipped with a neat screw cap that keeps out dirt and moisture. The turrets adjust in 0.1 MRAD clicks and have an adjustment range of 20 MRAD. The reticle is illuminated (red) and its brightness can be adjusted in six settings.

The eyepiece is equipped with a fast focus adjustment, so you can perfectly adjust the Hawke Airmax 30 SF Compact 4-16x44 AMX IR to your own eyesight. The lenses are fully multi-coated with 16 layers for a bright and very detailed image. Thanks to the large eyepiece, this riflescope offers an enormous wide field of view of 10.9-2.7 m at 100 meters.

Parallax can be adjusted by means of a side focus. A removable adjustment wheel is included for those who prefer its fine sensitivity. To ensure smooth and controlled zooming, the zoom ring has built-in resistance. At 10x magnification, the MIL markings on the reticle correspond to the image, which means you can use them, for example, to calculate distances.

---

Specifications

Brand	Hawke
Series	Hawke Airmax
Product code	13210
Product status	New
Optical magnification	4-16x
Objective diameter (mm)	44
Tube diameter (mm)	30
Reticle	AMX
Reticle position	2nd focal plane
Focusing	Side focus
Illumination	Yes
Mounting rail type	No rail
Eye relief (mm)	76
Field of view at 100 meters	10.9-2.7
Turret adjustment	0.1 Mrad

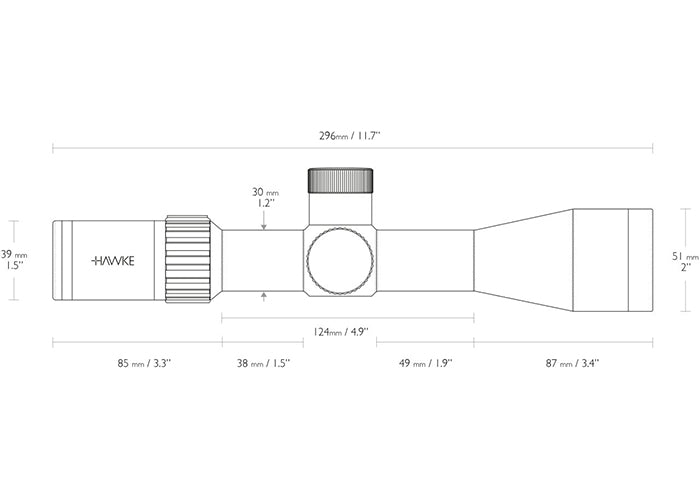

Length (mm)	296
Weight (grams)	621
Mounting rings included	No
Colour	Black
Extras	Protective caps, Side wheel, Tool
