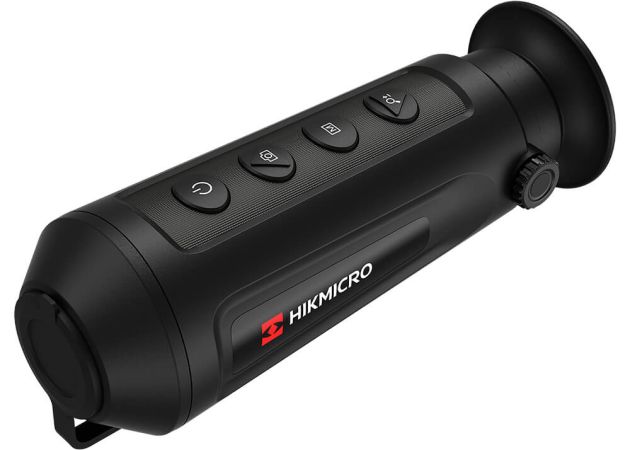

HikMicro Lynx S LC06S Thermal Monocular

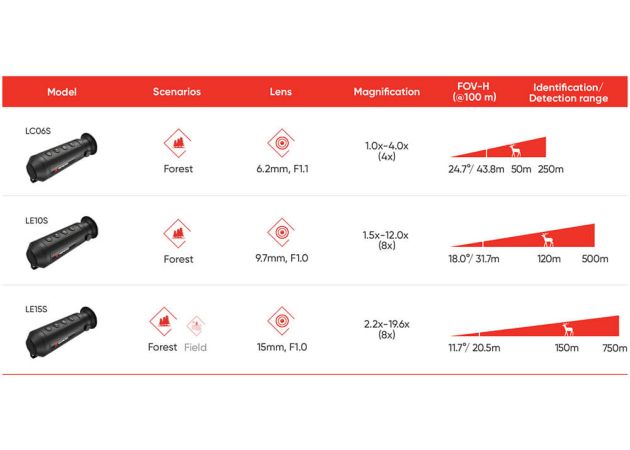

This HikMicro Lynx S LC06S is a compact handheld thermal imaging monocular that is easy to carry in a jacket pocket. It has easy-to-operate buttons on top of the housing and an IP67 waterproof rating, making it completely dustproof and allowing it to be submerged up to one meter deep for 30 minutes. The thermal imager has a detection range of 250 meters. It features a rechargeable lithium battery, providing up to 10 hours of use. By utilizing standby mode, you can extend the usage even further. The HikMicro Lynx S LC06S uses a 160x120p sensor with a pixel pitch of 12 µm. It has an NETD value of less than 35 mK, allowing the thermal imager to detect and display temperature differences. This ensures a sharp and detailed thermal image, enabling clear observation regardless of light conditions. The thermal images are displayed on an 800x600p OLED display with a refresh rate of 50Hz. This refresh rate provides very smooth images without stuttering. For display, you can choose from the following color schemes: • White hot • Black hot • Red hot • Fusion The HikMicro Lynx S LC06S thermal imager has a field of view of 43.8 meters at 100 meters. It features a standard, 1x optical magnification. Additionally, it has digital magnification of 2x and 4x. This maintains a good overview during observation. You can take photos and record videos (with audio) during observation. The thermal imager has an internal storage capacity of 8 GB, and you can even transfer images to your smartphone using the HikMicro Sight app. It's even possible to stream images directly to your smartphone to use it as a second display. This allows for easy and comfortable observation for two people.

---

Specifications

Brand	HikMicro
Series	HikMicro Lynx
Product code	HM-TS01-06S1F/W-LC06S
Type	Handheld
Sensor resolution (pixels)	160x120
Pixel pitch (µm)	17
Thermal sensitivity (NETD mK)	≤35
Optical magnification	1x
Digital magnification	2x, 4x
Objective diameter (mm)	6.2
Reticle	No
Focusing	None
Display type	OLED
Display resolution	800x600
Frame rate (Hz)	50
Streaming function	Yes
Battery type	Lithium
Battery life	10 hours
Dimensions (mm)	158.4×60.4×57 (l×w×h)
Weight (grams)	250
Including mounting rings	No
Extras	Lens cloth, USB cable, Wrist strap
